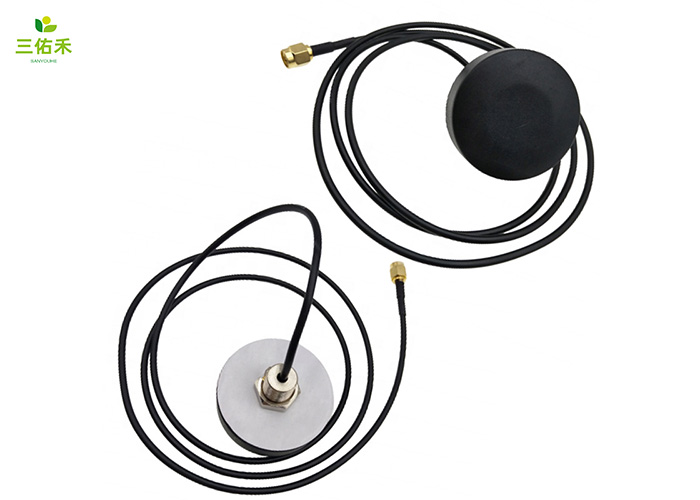

Waterproof IP67 Outdoor Mini 4g/Lte Puck Communication Antenna With Cable Wifi Antenna
Product information:
High-gain antennas are focused antennas with narrow radio beams, allowing for precise targeting of radio signals. This antenna is used in space missions as well as in flat, open areas where the geography won'tdisrupt radio waves.
Frequency:VHF-UHF Antenna , 315-430-470mhz Antenna , 868-915mhz Antenna , 2G GSM/CDMA(890-900-1800-1900Mhz) Antenna , 3G (850-900-1800-1900-2100mhz) Antenna , 2.4G Bluetooth /WIFI network card (2400-2500mhz) , GPS Antenna(1575.42mhz) ,GPS+BD(1575+1561), GPS+GSM+4G Antenan , 4G(700-960/1700-2680mhz) , NB(824-960mhz) Antenna , 5G Antenna(2150-5850mhz) , 2.4G+5G Dual Band
Material: Rubber / plastic , car / sucker , glass antenna , positioning / navigation / nautical , built-in , antenna cable , antenna connector , wire / cable , custom antenna .
Applications:Security monitoring, wireless router, mobile phone antenna, IoT smart, smart home, car mobile antenna, network HD camera, advertising all-in-one, shared vending machine, TV antenna, radio antenna, 5G image transmission, drone antenna
Parameter:
| Item | Specifications |
| Electrical | Frequency range | 850/900/1800/1900/2100/2400/2500/2600 |
| V.S.W.R | ≤1.5 |
| Polarization | Vertical |
| Gain | 2.0dBic |
| Inpendance | 50Ω |
| Mechanical | Weight(gram) | 2400-2483.5MHZ |
| Polarization | Linear |
| Gain | 32.0dBic |
| V.S.W.R | ≤2.0 |
| Inpendance | 50Ω |
| Mechanical | Cable | RG174 |
| Connectors | SMA/FAKRA or customized |
| Material | ABS |
| Mounting method | Adhesives /magnet |
| Environment | Operation temperature | - 40 °C ~ + 85 °C |
| Relative humidity | Up to 95% |
| Ingress protection | IP67 |
High-gain antennas can also be produced from parabolic antennas, phased arrays and yagi antennas. Antenna gains are defined with respect to hypothetical antennas that radiate equally in all directions – the isotropic radiator. This gain can be measured in decibels (dBi) or, in certain cases, decibels compared to the maximum intensity of the direction of half-wave dipoles (dBd).
Antenna gain refers to the ratio of the power density of the signal generated by the actual antenna and the ideal radiating element at the same point in space under the condition of equal input power. It quantitatively describes the degree to which an antenna radiates concentrated input power. The gain is obviously closely related to the antenna pattern. The narrower the main lobe of the pattern, the smaller the side lobe and the higher the gain. Antenna gain is used to measure the ability of the antenna to send and receive signals in a specific direction. It is one of the most important parameters for selecting a base station antenna.
Production Capacity:
We Make Around Five Million Crimps Per Month and We Have Ambitious Expansion Plans to Make Around Ten Million Crimps Per Month .
Competitivenes…
We Maintain Competitiveness with the Following Steps
- Procurement of Raw Materials from the Most Cost Effective Sources,
- Keeping the Least Inventory.
- Adoption of the Best Process to Increase Productivity to the Optimum Level.
- Adoption of the Latest Techniques,
- Value Engineering as a Continuous Process
- Best Quality Product with Competitive Price.
- 100% Acceptance with Customers (Zero Defects)
Production equipment :
Fully Automatic Wire Cutting Striping and Crimping Machine
Wire Cutting and Stripping Machine
Multi Core Cable Cutting and De-sheathing Machine
Pneumatic Core Stripper
Wire Cutting Stripping and Twisting Machine
Microprocessor Based Battery Cable Cutting Machine
Pneumatic Cable Outer Jacket Removal Machine
Pneumatic Crimping Machine for Scattered Terminals
Semi Automatic Crimping Machines
Electronic Crimping Presses
Applicators
Toggle Crimping Machines
Wire Stripping and Twisting Machines
Soldering Station
Coupler Assembly Station
Air Compressor ( 3 Hp and 5 Hp)
25 Kva Generator
Microprocessor Based Harness Tester
FAQ:
Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q: What is your lead time?
A: It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
Q: What is your payment term?
A: T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.
Q: What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
